Brenspeed Exclusive:
2018–2025 F-150 Dual & Triple Pump Fuel Systems
Powered by Fore
Innovations | Supports 1200–1400 RWHP
When you're chasing big power, fuel delivery isn't optional—it's
critical. Brenspeed’s exclusive twin and triple pump fuel systems for
2018–2025 F-150s are engineered to feed your power plant with precision
and reliability, supporting up to 1400 rear-wheel horsepower.
Advanced Fuel Control,
Maximum Performance
Our regulated fuel system delivers:
•
Static-referenced fuel to the HPFP
•
MAP-referenced fuel to the port injection
Premium Components,
Race-Ready Design
• In-tank supply system retains OE
transfer, fuel level sender & EVAP functionality
• Billet mount for OE fuel pressure
& temperature sensor
• Upgraded feed and return lines for
high-volume flow
• High-capacity filtration and integrated
check valve
• Flow-through T-block direct-mounted to
HPFP inlet tube
• Dual high-capacity F2i regulators for
precise fuel pressure control
This is not just a fuel system—it’s Brenspeed’s handpicked solution for
serious horsepower. Whether you're building a street monster or a track
weapon, this setup ensures your engine gets the fuel it demands when it
matters most.
Fuel the fire. Own the
power. Brenspeed delivers

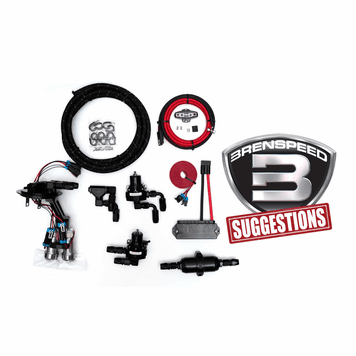

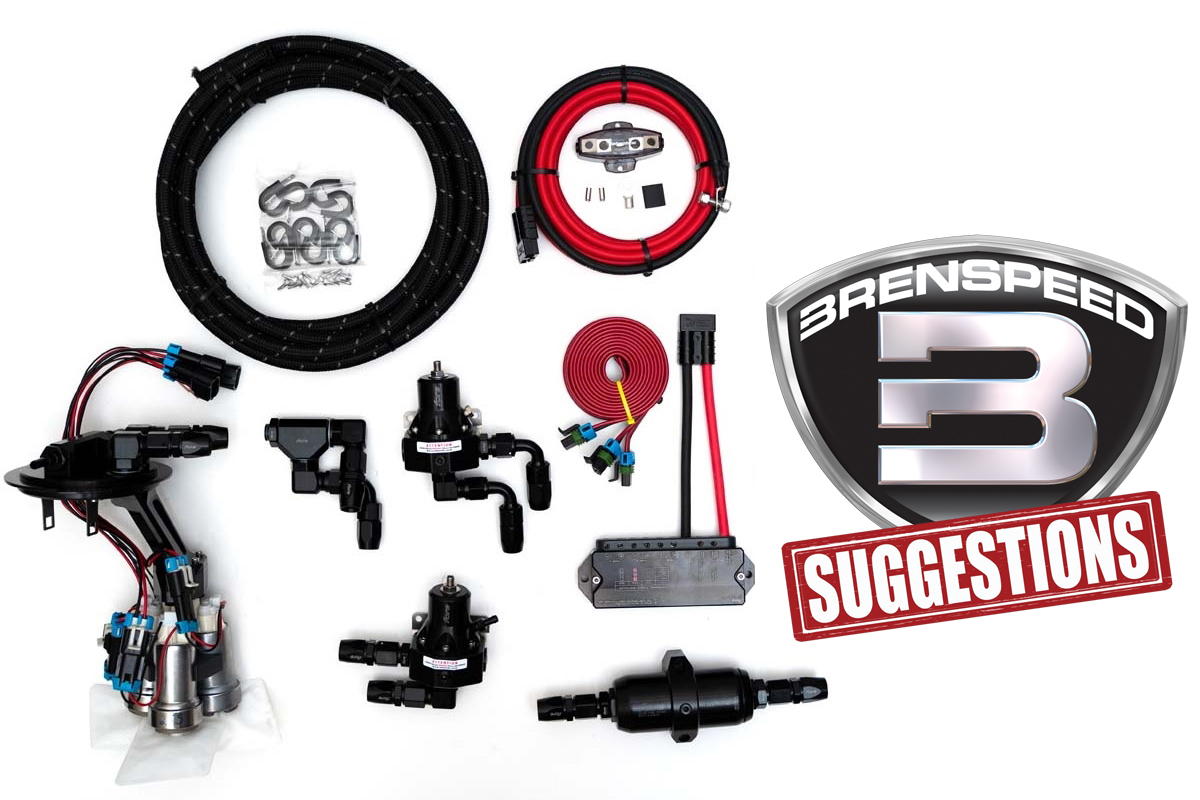

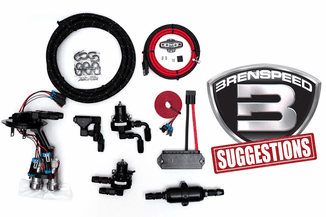

INCLUDES
F-150
Dual Pump Module
Dual
F2i Fuel Pressure Regulators
FC2A
Controller with wiring (Triple
pump includes FC3A Staged Controller with wiring)
Circuit
breaker upgrade (Eaton)
Honeywell
Pressure Switch for FC3 (For Triple Pump Only)
88mm
Inline Stainless Steel Fuel Filter
TI
Auto F90000285 fuel pumps
-10
RH235 Feed Line
T-block
to direct mount on HPFP (High Pressure Fuel Pump)
All
fittings, hose, hardware required for typical fuel line plumbing
-35
feet of fuel line (Redhorse 235-10 (5/8" nominal))
-14
billet compression style hose ends (8 x straight, 3 x 90º, 2 x 45º, one
150º)
-Qty
9, billet low profile 90 degree AN to ORB swivel fittings
-Qty
4, billet straight AN to ORB fittings
-Qty
1, 3/8 EFI female to ORB-10 male adapter
-Qty
2, 1.25" rail extensions
-Qty
1, ORB-8 plug
-Qty
10, hose straps with stainless mounting screws
-Qty
1, Billet mounting bracket
-Qty
2, 0-100psi Fuel Pressure Gauges
This
is a stand alone fuel system. Professional installation and a custom
tune is required. Qualified installers and tuners must be able to
interface to the OE harness and FPDM, understand proper component
placement, hose routing, and deliver the vehicle with factory-like pump
prime/on/off logic with no error codes. Fore Innovations will supply
basic system schematics and detailed component level instructions, and
can provide troubleshooting of the performance and function of our
system and components. Fore Innovations will not provide assistance
with ECU integration/tuning or elimination of alarm codes or the CEL.
This
fuel system generates substantially more heat and capacity than the
original fuel system. The high powered fuel pumps make much more heat
than the factory pump and the composite fuel tank construction acts as
an insulator and stores heat. Additionally, the shape of the factory
fuel tank limits the pickup capacity of this fuel system. The user
(driver) must keep more fuel (than normal) in the tank at all times to
minimize heat damage and ensure adequate fuel pickup.
